Intelligent Open-Width Singeing Machine

Introduction

The Intelligent Open-Width Singeing Machine delivers precise and efficient fabric singeing for modern textile finishing lines. Its advanced burner technology produces a strong, uniform flame that removes surface fibers and improves fabric smoothness. The machine supports normal, cut, and through burning, with adjustable firepower for different fabric requirements. PLC control, touchscreen operation, automatic safety systems, and circulating cooling water ensure stable and reliable performance. With a fabric width of up to 2600 mm and speeds of 40–100 m/min, it suits high-volume textile production.

Features

• Independent intellectual property and patented technology.
• The torch is completely interchangeable with the German Ostov.
• The flame at the fire mouth is neat and uniform, and there is a circulating cooling water channel at the fire mouth, which will not deform after long-term use.
• Low energy consumption, 50% lower than the original, greatly reducing production costs.
• Cloth burning method: one positive and one negative, or two positives.

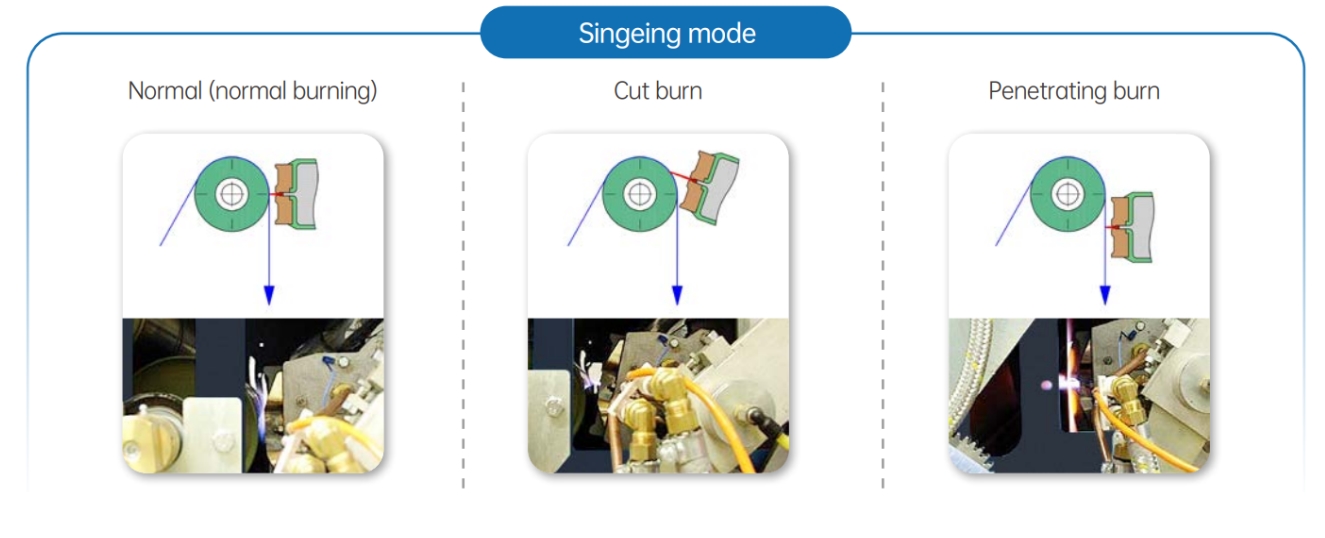

• Singeing method: normal burning, cut burning and through burning.
• The firepower can be adjusted from 1.0 to 2.5.
• Extinguishing method: steam or nitrogen.
• The singeing machine has high degree of automation, complete functions and good protection.
• PLC programmable controller control, touch screen and button double operation, interchangeable. The touch screen will not be damaged due to operation reasons, which will affect production.

Characteristics

• The singeing machine is equipped with the “double jet” aluminum alloy burner of German technology, which has perfect flame and low energy consumption. Its main features are:
• The flame at the burner is neat and uniform, which is the basic requirement of the burner.
• Flame temperature ≥ 1300° C, residual temperature of cloth surface ≥ 250° C.
• The flame is strong, powerful, uniform and penetrating. The flame can pass through the warp and weft yarn gap of the cloth, burn the nap in the warp and weft yarn gap, make the cloth surface smooth and clean, and the singeing grade can reach 5.
• Low energy consumption. The natural gas consumption of the fire mouth with a mechanical width of 2.6 meters is 10-12 cubic meters/hour *pieces.

Safety Device

The unique safety protection device can effectively ensure that in case of sudden power failure or sudden interruption of compressed air supply, the fire can be quickly closed and kept away from the fabric to avoid fire.

Nitrogen generation device (optional): nitrogen fire extinguishing is optional. Nitrogen fire extinguishing is adopted, which has better and safer fire extinguishing effect, no watermark on the cloth surface and low temperature.

Machine Safety

• There are various online tests to ensure stable, reliable and normal operation.
• Safety is guaranteed, smoke exhaust fan, high pressure fan, flame state.
• Strong protection measures, cooling water flow, water pressure, water temperature, fire location detection, to ensure the normal operation of the fire.
• Box structure, side smoke exhaust structure. No smoke leakage, protect the environment and make the environment clean.
• There is also a cooling water circulating cooling system. The cooling water circulating cooling system achieves constant pressure and stable supply of cooling water to further protect the safety of singeing.
• Compact structure, small distance between roller bodies.
• The mechanical strength of the frame and roll body is high, the fit tolerance is small, and the transmission is stable. Except for the excessive roll, all are power rolls, which reduces the tension and prevents wrinkling.
• Multi-group transmission and wire splitting prevent wrinkling and curling, and the singeing is uniform.

Machine Technical Parameter

• Car type: Left and right (right-hand vehicle by default)
• Width of cloth: 2600 mm
• Heat source: Both liquefied gas and natural gas
• Energy consumption: 10–12 m³/h × pieces (based on 2600 type width using liquefied gas)
• Cloth speed: 40 m – 100 m/min
• Environment protection: Standard, pollution-free and low noise
• Burning method: Counter-burning, cut burning and through-burning
• Spacing adjustment: Ø180 cooling drum adjustable
• Breakpoint processing: Automatic turning of fire
• Transmission mode: AC variable frequency speed regulation
• Fire extinguishing and cooling mode: Steam, optional nitrogen generation unit
• Burning grade: Can reach level 5
• Total power: 18 kW
• Extinguishing configuration (optional): Nitrogen generator, tail gas treatment device, water rolling car fire extinguishing

Why Choose the Intelligent Open-Width Singeing Machine?

Choose the Intelligent Open-Width Singeing Machine for high-quality fabric finishing, lower energy consumption, and dependable production safety. Its German-technology double-jet aluminum alloy burner creates a powerful, uniform flame that penetrates fabric gaps and removes unwanted surface fibers effectively. The machine can achieve a singeing grade of up to Level 5, helping produce a cleaner and smoother fabric surface. Its optimized burner design reduces energy consumption by up to 50% compared with the original system, helping lower production costs. PLC control with touchscreen and button operation gives operators flexible and reliable control. Advanced safety systems monitor flame conditions, cooling water, smoke exhaust, and compressed air to protect both fabric and equipment. Optional nitrogen extinguishing provides an additional safe and clean fire-control solution.
