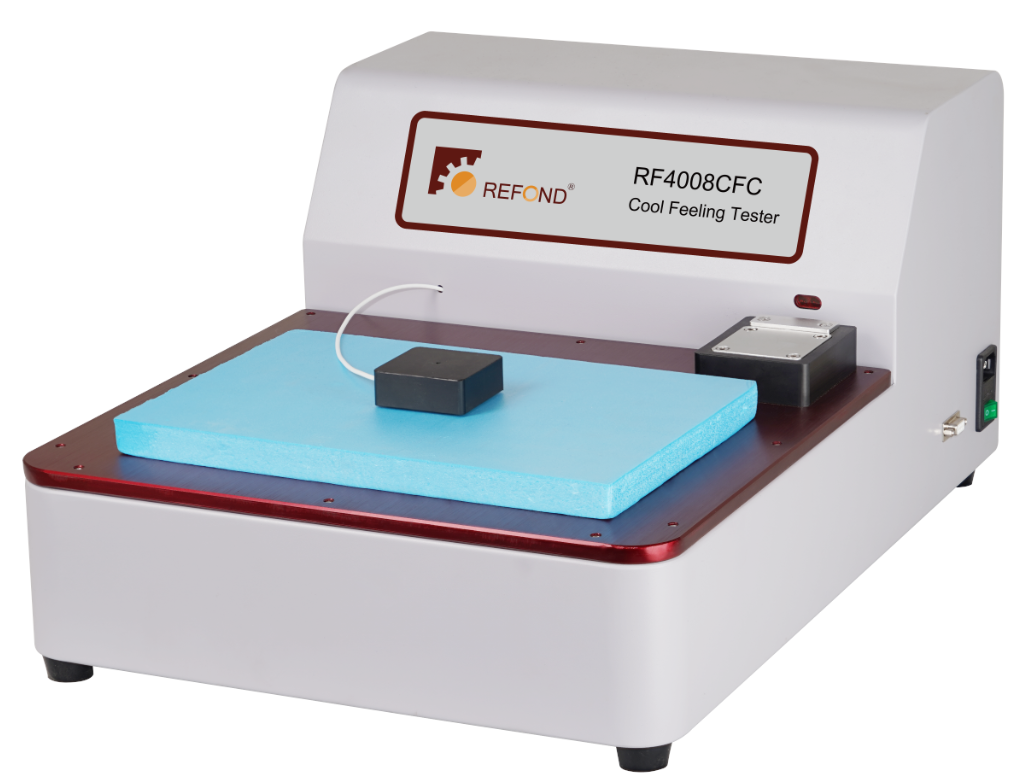

Cooling Feeling Tester

Compare
Categories: ,

Description

Cooling Feeling Tester,measures the instant cool feeling as the sample contact with human skin.

Specimen is put onto a flat heating platform (constant temperature) and waiting for equilibrium. The cool feeling test head has a copper plate which can store energy (heat). The test head which has been heated by another heating plate is lift and put onto the top surface of the specimen immediately, then measure the Max. heat transfer rate (Qmax) from the cool feeling test head to the specimen.

  1. RF4008CFCis high-tech product, the test is fully automated.
  2. a) Micro-computer control.
  3. b) Touchscreen control and display. It can work without PC software.
  4. c) Test head temperature controlled.
  5. PC software collects testing data and display curves and testing results.



Test Scope:

Textile fabrics, Leather, Cosmetics, Automotive Interior, Medical Products, etc.

Testing Standards:

GB/T35263

Specification:

  1. Temperature Control:test head temperature automatically control
  2. Test platform uses standard foam pad
  3. Temperature Range for Test Head: 30-40ºC ± 0.1 ºC
  4. Temperature Accuracy: ± 0.01 ºC
  5. Specimen Size: 100mm x 100mm, Max. 200mm x 200mm.
  6. Cool Feeling Test Area:30mm x 30mm
  7. Heat Loss Measurement Range: Max. 10W
  8. Touchscreen Control and Display
  9. PC software for collecting data and display curves
  10. Power:AC 230V,50Hz/60Hz
  11. Dimension: 400(L) ×400(W) ×300(H)mm
  12. Weight:Approximate 25kg
