High-Volume Automated Powder Dosing Systems

High-Volume Automated Powder Dosing Systems

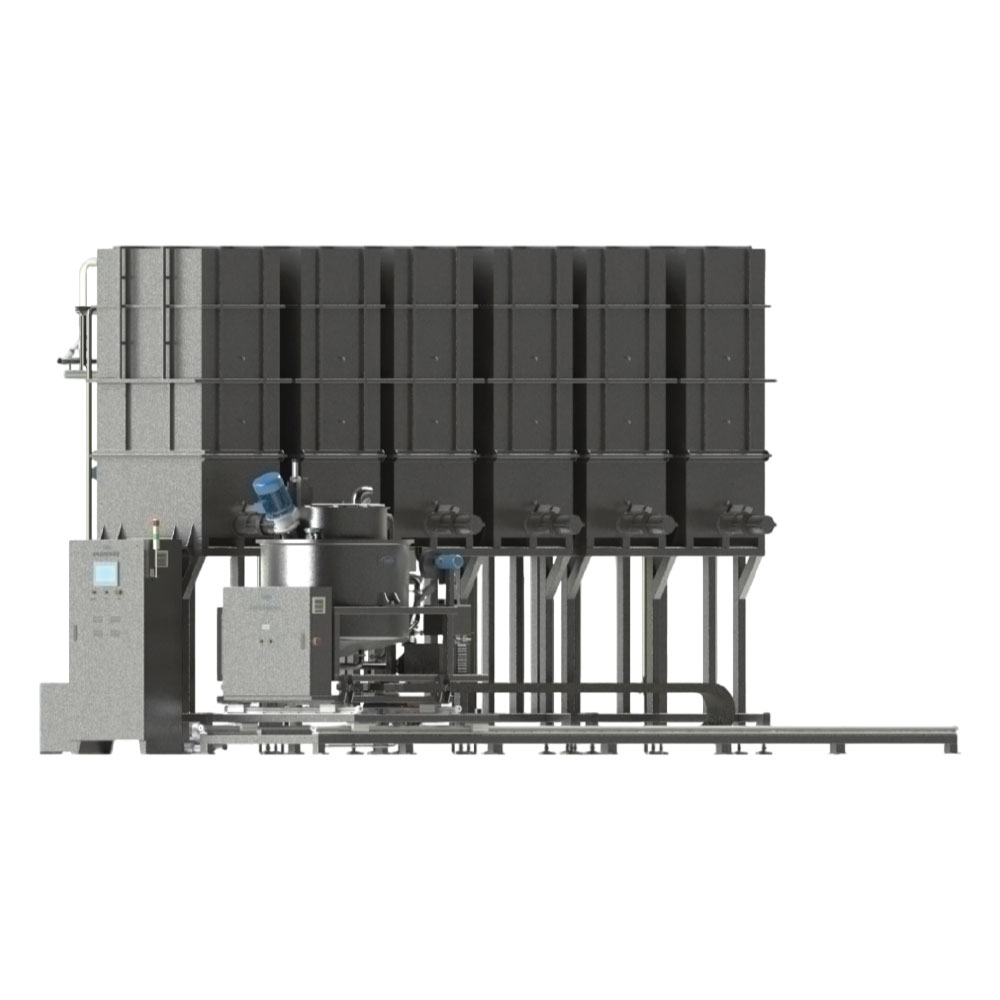

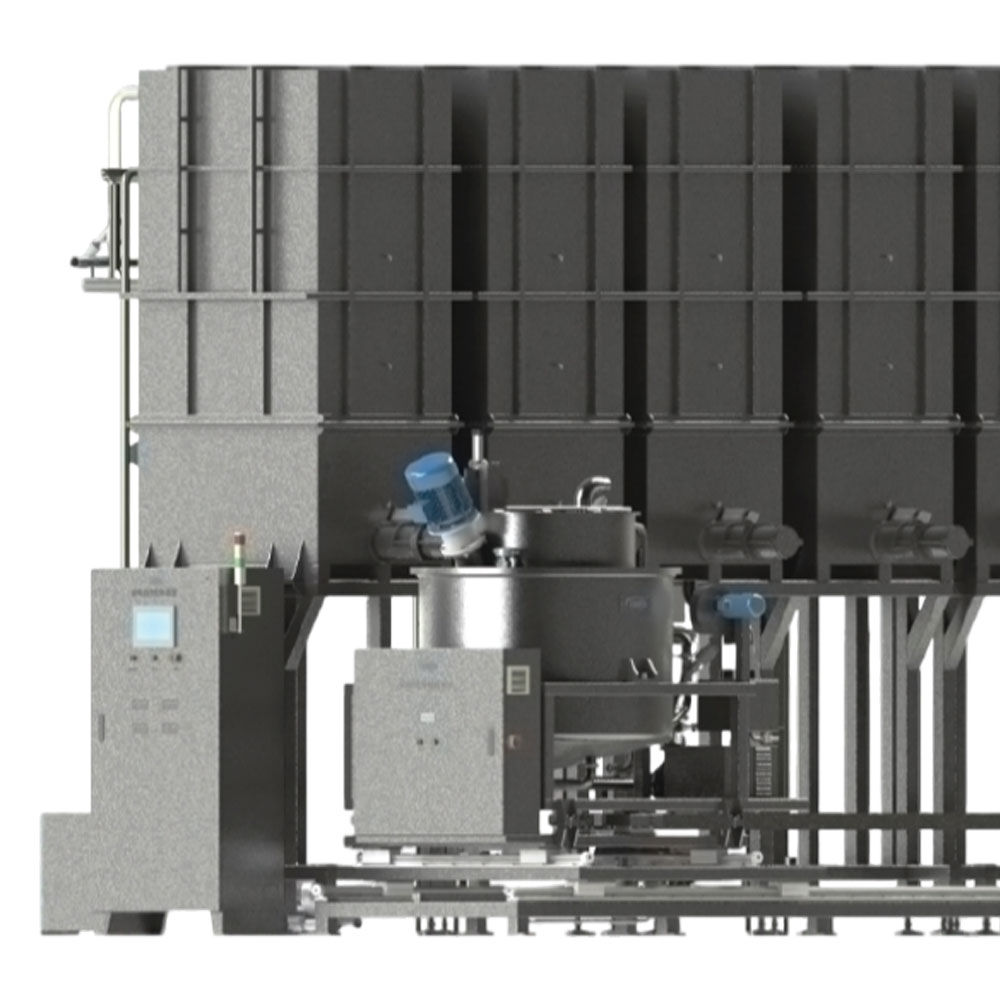

The high-volume automated powder dosing systems is composed of high-volume dye tanks, mobile weighing and material preparation machines, hot water tanks, dispensing pipelines, switching valves, etc. The material dissolving machine can move forward and backward as well as left and right. When weighing materials, the material dissolving machine moves to the corresponding material box position. The dye directly enters the material dissolving machine from the material box, saving the transfer bucket for weighing. At the same time, it also eliminates the process of entering and exiting the bucket and rinsing the bucket during the conventional material dissolving process, resulting in a relatively high dispensing efficiency.

Advantages & Characteristics

• It adopts weighing modules of international brands, featuring good weighing stability and high weighing accuracy.
• It is equipped with a multi-turn absolute encoder to detect the position of the material dissolving machine in real time, ensuring reliable operation.
• The material dissolving machine has both circulation and stirring functions, which can reduce the dissolving time of difficult-to-dissolve materials.
• The material dissolving machine is equipped with a negative pressure filtration device. When discharging materials, a negative pressure is formed inside the material dissolving machine to prevent dye dust from overflowing.
• For applications with high precision requirements, a weight-loss type material box can be optionally equipped.
• It is configured with a negative pressure feeding device to prevent the flying of dye dust.
• It supports data connection with the factory’s ERP system and the central control system of the dyeing machine to achieve automatic dispensing based on the dyeing process.
• Data records are maintained for the processes of material weighing, material dissolving, and dispensing, enabling data traceability of the production process.
